KPI 14. Overall Equipment Effectiveness

Slide Content

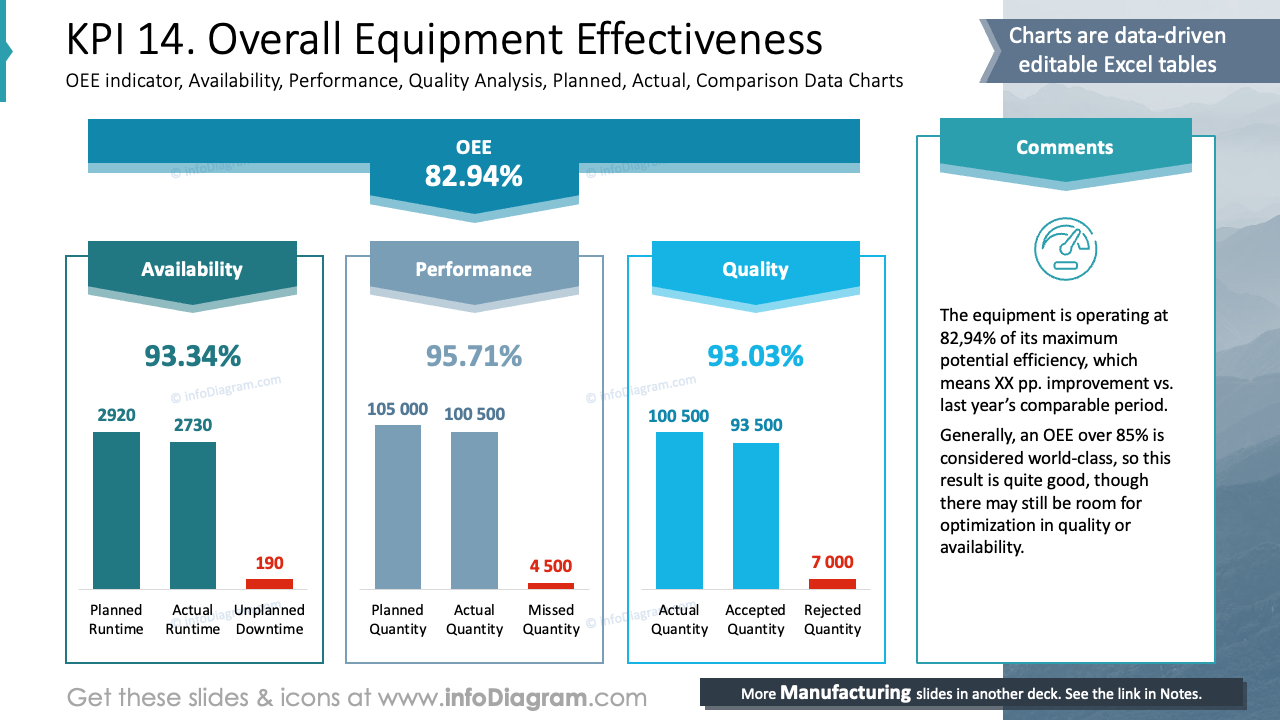

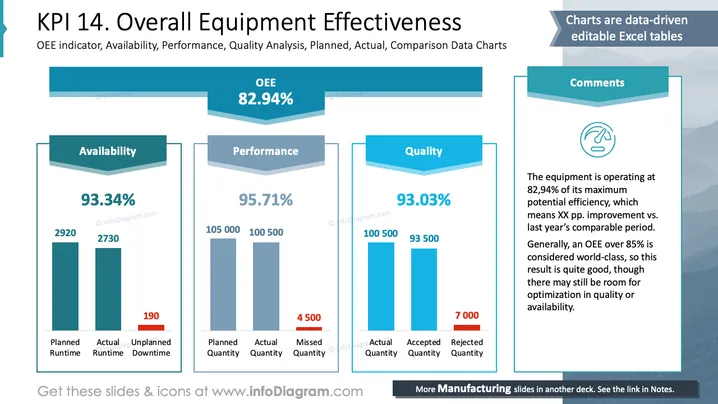

The slide presents Overall Equipment Effectiveness (OEE) at 82.94%, breaking down into three key metrics: Availability at 93.34%, Performance at 95.71%, and Quality at 93.03%. Availability compares planned versus actual runtime, showing unplanned downtime. Performance measures planned versus actual quantity produced, highlighting missed output. Quality compares actual with accepted quantity, pointing out rejected items. Comments indicate that while the current OEE is good, improvements can be made.

Graphical Look

• The slide is divided into four main sections with distinct borders and labels.

• Three vertical columns represent Availability, Performance, and Quality, each with a banner on top and bar charts below.

• Bars use different colors to represent planned, actual, and discrepancies (unplanned downtime, missed, and rejected quantities).

• A comments section on the right has a teal banner with text and an icon for emphasis.

• The OEE percentage is highlighted at the top in a dominant teal box.

The slide combines structured, color-coded graphics with textual data to efficiently communicate equipment effectiveness metrics in a business context.

Use Cases

• Manufacturing process improvement meetings.
• Performance analysis reports for plant managers.
• Strategic presentations for board members focusing on operational efficiency.
• Training sessions on equipment management and optimization.
